1. Why build a PC?

Customizations: Choose the exact specifications for your needs, whether gaming, productivity, or media editing.

Cost-Effectiveness: Save money compared to pre-built PCs with similar specifications.

Learning Experience: Gain hands-on knowledge of computer hardware.

Upgradability: Easily replace or upgrade individual components over time.

Overview of the Tutorial

This guide will cover:

Essential components and tools needed.
Step-by-step assembly instructions.
Initial setup and testing.
Maintance tips to ensure longevity.

2. Required Componets

Essential Parts

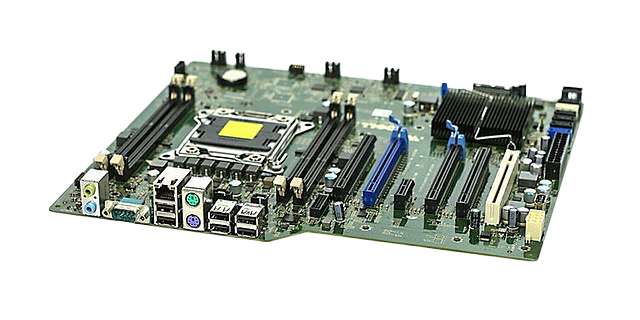

Motherboard: The main circuit board connecting all components. Example: ASUS ROG Strix B550-F.
CPU: The brain of the computer. Example: AMD Ryzen 5 5600X or Intel Core i5-12400.

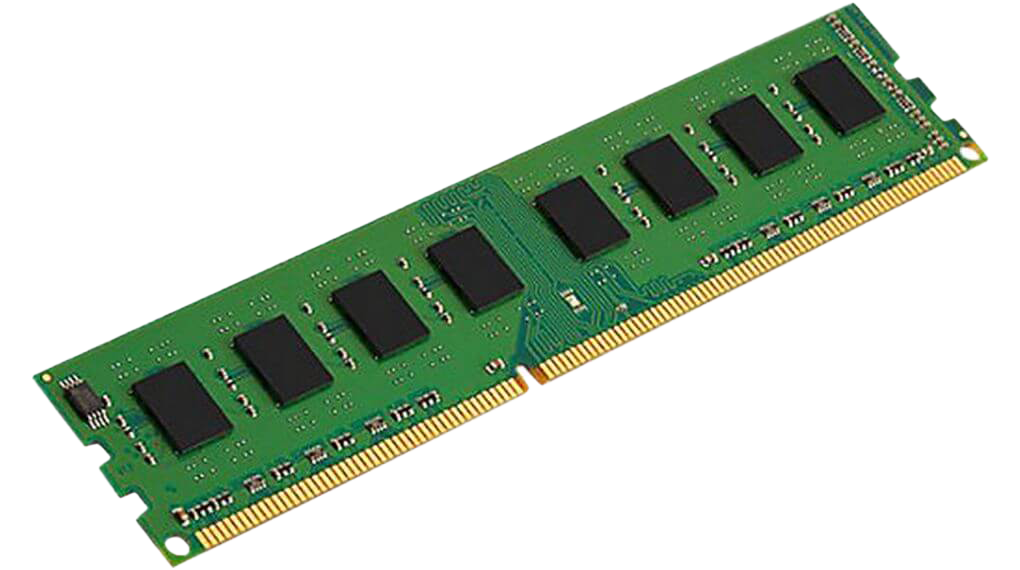

RAM: Temporary memory for active tasks. Example: Corsair Vengeance 16GB DDR4.
Storage:
- SSD: For speed. Example: Samsung 970 Evo 1TB.
- HDD: For large, inexpensive storage. Example: Seagate Barracuda 2TB.

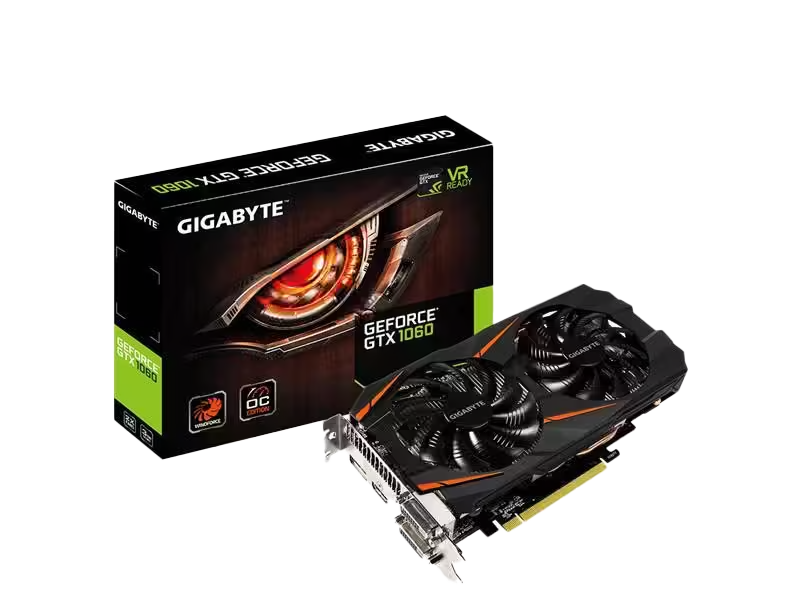

GPU: For gaming or graphical tasks. Example: NVIDIA GeForce RTX 3060.

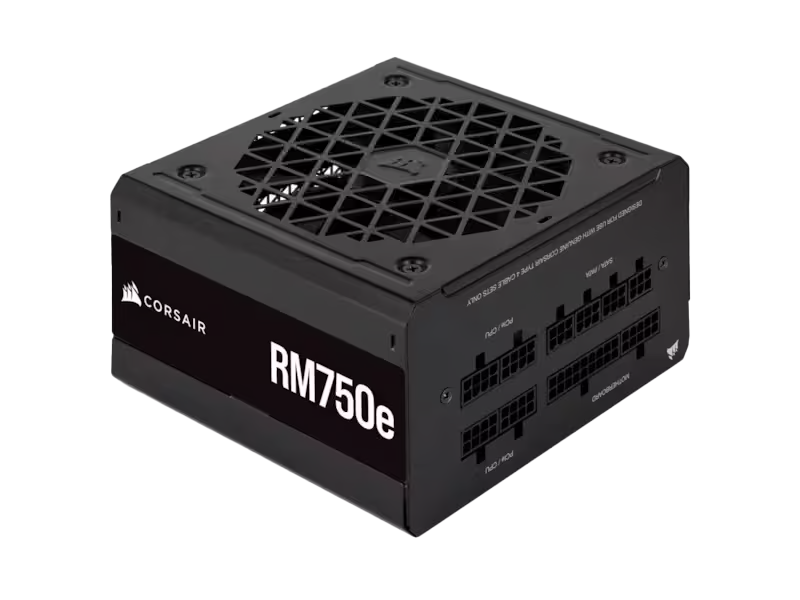

PSU: Powers the entire system. Example: Corsair RM750x 750W.
PC Case: Houses all components. Example: NZXT H510.
Cooling System: CPU cooler or liquid cooling (if needed).

Tools Needed

Phillips-head screwdriver.
Anti-static wrist strap or mat.
Thermal paste (if not pre-applied to the CPU cooler).
Zip ties for cable management.

3. Step-by-Step Instructions

Step 1: Install the CPU

Open the CPU socket on the motherboard.
Align the CPU with the socket (match the triangle markers).
Gently place the CPU and secure it with the retention arm.

Step 2: Install RAM

Open the RAM slots' clips on the motherboard.
Align the RAM module with the slot and press firmly until it clicks into place.

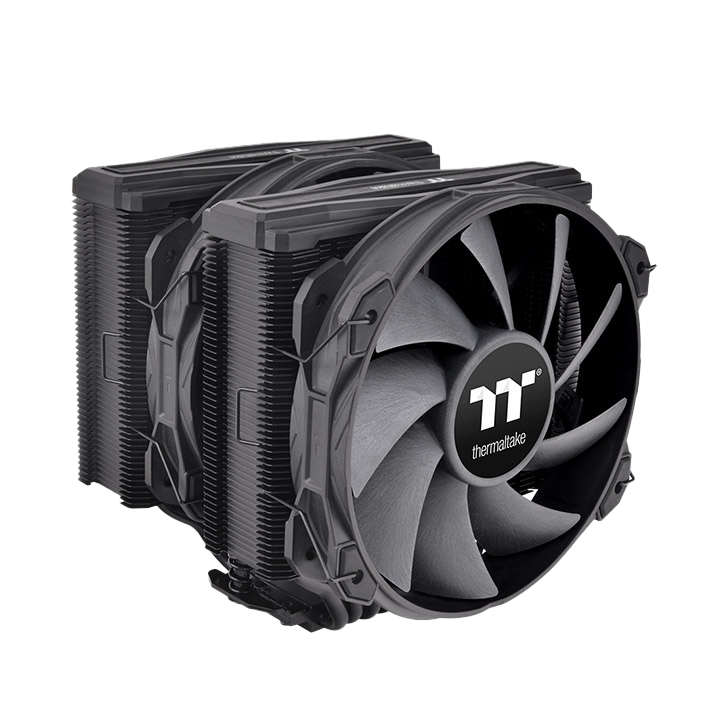

Step 3: Install the CPU Cooler

Apply thermal paste (if necessary).
Mount the cooler as per its instructions and connect it to the motherboard's fan header.

Step 4: Mount the Motherboard

Install standoffs in the PC case (if required).
Carefully place the motherboard in the case, aligning it with the standoffs and rear IO shield.
Secure the motherboard with screws.

Step 5: Install Storage Device

For SSDs: Mount them in the designated slots or use M.2 slots.
For HDDs: Place them in the drive bay and secure with screws.

Step 6: Connect the PSU

Mount the PSU in the case.
Connect the 24-pin motherboard cable, CPU power cable, and any other necessary cables to components.

Step 7: Install the GPU

Remove the corresponding PCIe slot cover from the case.
Insert the GPU into the PCIe slot on the motherboard.
Secure the GPU with screws and connect the power cables.

Step 8: Cable Management

Route cables through the case's cable management channels.
Use zip ties to keep cables neat and out of airflow paths.

4. Testing and Setup

Step 1: Booting for the First Time

Connect the monitor, keyboard, and mouse.
Turn on the power and ensure the system boots into the BIOS.
Check that all components are detected (RAM, storage, CPU, GPU).

Step 2: Install the Operating System

Use a bootable USB drive with your preferred OS (e.g., Windows, Linux).
Follow on-screen instructions to install the OS.
Install motherboard and GPU drivers.

5. Maintance and Tips

Cleaning: Dust your PC every 3-6 months using compressed air.
Software Updates: Keep your OS, drivers, and software up to date.
Thermal Monitoring: Use tools like HWMonitor to check temperatures.
Upgrades: Upgrade components as needed to maintain performance.
